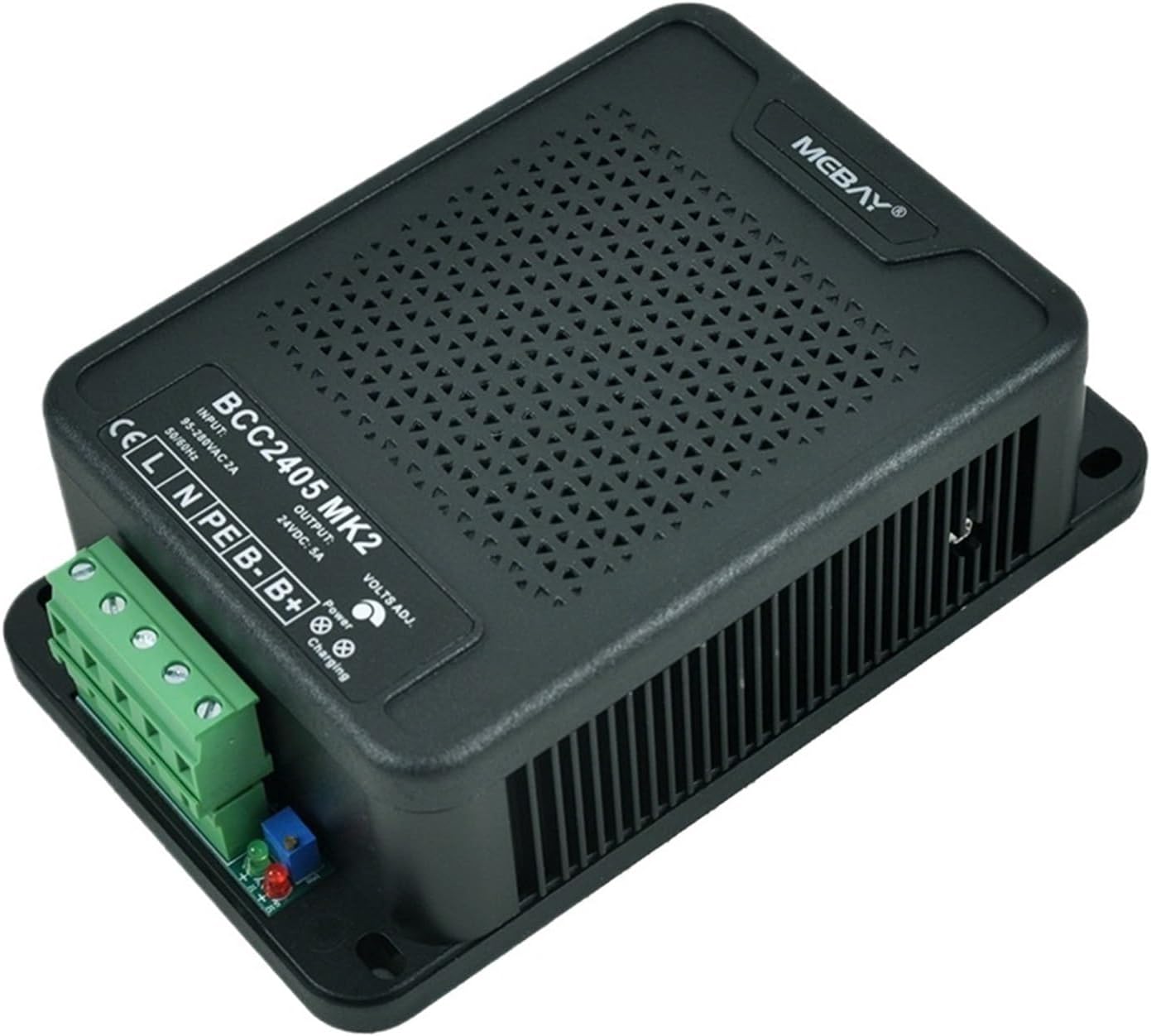

24V 5A BCC2405 MK2 Generator Battery Charger Auto Intelligent Float Charging Adapter Power Supply Genset Parts

Battery ChargersSummary:The charger is specially designed for the lead-acid battery used in the engine. It adopts the three-stage intelligent control mode of constant current fast charging, current limiting and trickle floating charging. It can be charged for a long time without damage to the battery. It can maintain the full state of the battery and ensure the service life of the battery. The charger can be used in parallel with the engine charging generator without disconnecting the charger during the operation of the engine.Main Features:The metal shell has good heat dissipation effect and strong anti-interference ability.Using advanced switching power supply mode, wide AC input voltage range.Three stage intelligent charging to maintain battery power automatically.With short circuit and reverse connection protection.It has charging voltage and charging current fine tune function.It has LED which can indicate the working state of the chargerThe charger adopts a three-stage intelligent control mode in accordance with the characteristics of lead-acid batteries. The first charging mode is "constant current mode", when the battery voltage is lower than the preset value, it is a constant current charging stage; the charging current is rated at 5A, the high current charging makes the battery power rise rapidly, the rising process is a fast charging state, the performance is character by the red charging indicator light is always on. The second stage of charging mode is "constant voltage mode", when the battery voltage rises above the preset value soon after charging in constant current mode, the charging current decreases as the battery voltage rises, the charger maintains constant voltage output at this time, the charging current decreases slowly and the terminal voltage of the battery is slowly stabilised at the average charging voltage value, during this process the red The charging indicator lights up. The internal timer starts when the evenly state is reached and the charging current drops below 0.7A or after approx. 3.5 hours to float charge mode;The charger enters an evenly charge state: when the charging current is greater than 0.7A and less than 5.2A. The third stage of charging mode is "float mode", after the battery has been charged in both modes, the battery is basically full, the charger output voltage automatically switches to the float voltage of 27V, the charging current drops to 0.7A, the performance characteristics of the red charging indicator goes out. The float mode charging current offsets the self-discharge of the battery and maintains the battery in a fully charged state without the need to disconnect the charger and has no effect on battery life.5. Operation instructionCharge voltage regulation:When the charger is installed on site for voltage regulation, the battery must be disconnected from the charger and the voltage potentiometer (VOLT ADJ.) must be adjusted at the same time as the output voltage of the charger is measured until the appropriate value is reached. Clockwise adjustment of the VOLT ADJ. potentiometer can increase the output voltage and reduce the output voltage by counterclockwise adjustment. Note:Because there is diode and current-limiting circuit inner the charger, it can be used together with charging generator, and there is no need to disconnect the charger when cranking. Note:During gen-set is running, high current will cause voltage drop in charging line, so recommend separately connecting to battery terminal to avoid disturbance on sampling precision.==========Model Number : BCC2405 MK2Nominal AC Voltage : AC 95-280VMax.AC Voltage : Ac 90~305VAC Frequency : 50Hz/60Hzcharging current : 5A
